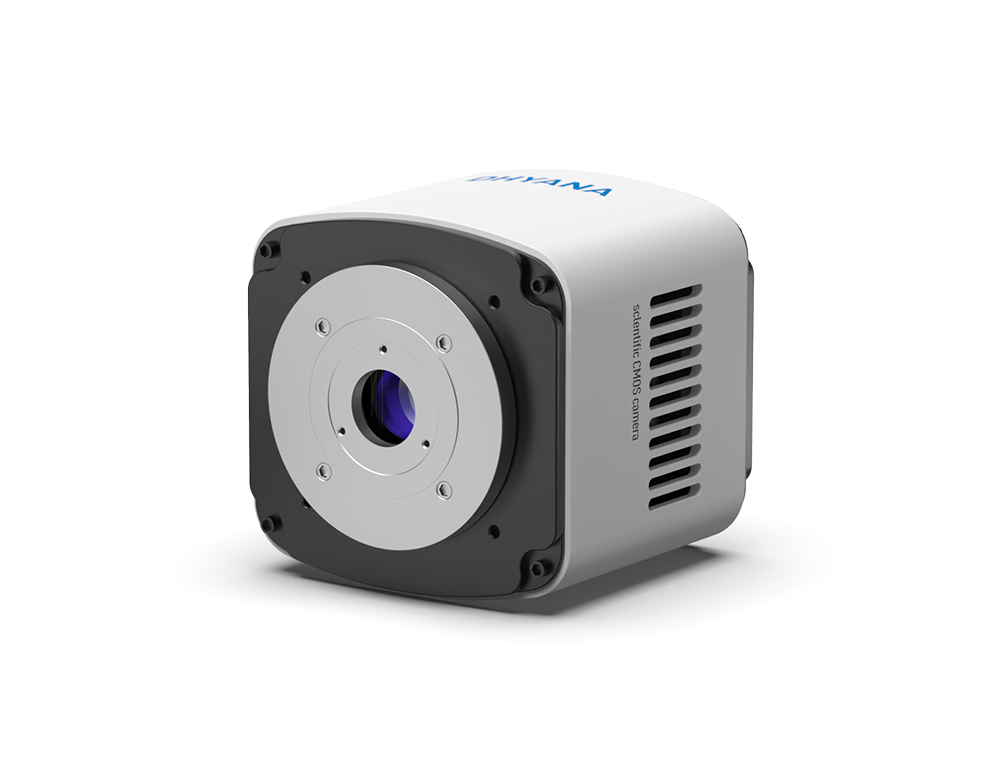

Dhyana 400D
4MP mono FSI sCMOS camera with 72% Peak QE high sensitivity.
- 72 % QE @ 595 nm
- 6.5 μm x 6.5 μm
- 2048（H） x 2040 (V)
- 35 fps @ 16 bit
- USB3.0
Overview
The Dhyana 400D is a front-illuminated cooled sCMOS camera. It performs to an excellent standard due to its high sensitivity, low noise and high-speed readout. With a peak QE of 72% at 600nm and a readout noise of only 2.5e- in HDR mode, the Dhyana 400D is perfect for low-light imaging applications such as bioluminescence, and chemiluminescence.
-

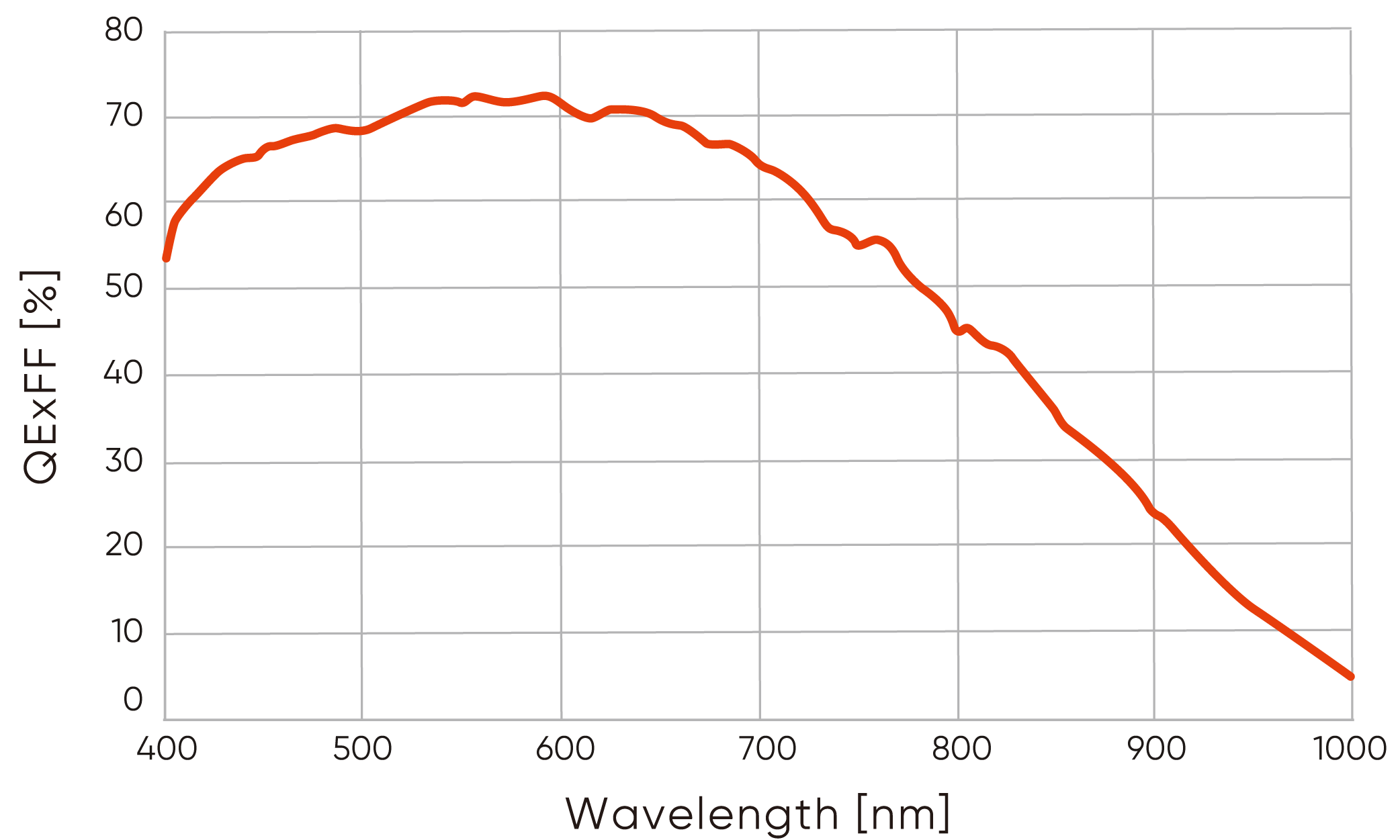

72% Quantum Efficiency
The Dhyana 400D adopts front-illuminated sCMOS technology with a peak quantum efficiency of 72% and a hardware 2X2 binning function, which means it has superior sensitivity for low light imaging.
-
Camera Cooling Technology
The Dhyana 400D operates at -15 °C to ensure long-term reliable operation, significantly reducing the hot pixels caused by the accumulation of dark current, and obtaining a purer fluorescent background image.
-
Optical Matched Pixel Size
Get the most from your optical setup. 6.5μm pixels perfectly match the ideal pixel size for High-NA 100x, 60x and 40x microscope objectives, offering optimal spatial sampling and sensitivity. This size also offers well-balanced imaging for lens-based optical setups.
Specification >
- Model: Dhyana 400D
- Sensor Type: FSI sCMOS
- Sensor Model: Gpixel GSENSE2020
- Peak QE: 72 % @ 595 nm
- Color/Mono: Mono

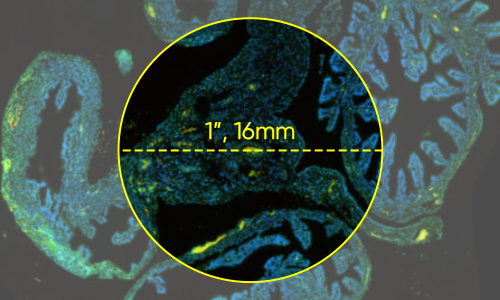

- Array Diagonal : 18.8 mm
- Effective Area: 13.3 mm x 13.3 mm
- Resolution: 2048 (H) x 2040 (V)
- Pixel Size: 6.5 μm x 6.5 μm
- Full-Well Capacity: Typ. : 45 ke-
- Dynamic Range: Typ. : 86.6 dB
- Frame Rate: 35 fps @ 16 bit
- Readout Noise: HighGain: 2 e-
- ShutterType: Rolling
- Exposure Time: 13 μs ~ 10 s
- Cooling Method: Air
- Cooling Temperature: 35 ℃ below ambient
- Dark Current: 0.12 e-/pixel/s @ -10 ℃
- Binning: 2 x 2
- ROI: Support
- Trigger Mode: Hardware, Software
- Output Trigger Signals: Exposure start, Global, Readout end
- Trigger Interface: SMA
- Data Interface: USB3.0
- Data Bit Depth: 12 bit, 16 bit
- Optical Interface: C-mount
- Power Supply: 12 V / 8 A
- Power Consumption: 60 W
- Dimensions: 120 mm x 119 mm x 121 mm
- Weight: 1853 g
- Software: Mosaic, LabVIEW, MATLAB, Micro-Manager 2.0
- SDK: C, C++, C#, Python
- Operating System: Windows, Linux
- Operating Environment: Temperature 0 ~ 40 °C, Humidity 10 ~ 85 %
