Pending sCMOS >
-

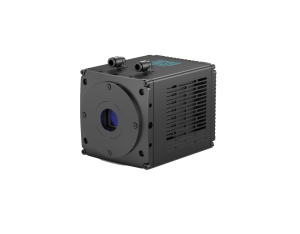

Leo 3249
High resolution, high speed, large field of view imaging with the benefits of Global Shutter.
- Global Shutter
- 3.2 μm pixels
- 7000 (H) x 7000 (V)
- 31.7mm Diagonal
- 71 fps
High Sensitivity >
-
Aries 6506
Ultimate Sensitivity sCMOS Camera
- 95% Peak QE
- 6.5 μm x 6.5 μm
- 22 mm Diagonal FOV
- 200 fps @ Full Resolution
- 0.7e- Readout Noise
-
Aries 6510
Ultimate Sensitivity sCMOS Camera
- 95% Peak QE
- 6.5 μm x 6.5 μm
- 29.4 mm Diagonal FOV
- 150 fps @ Full Resolution
- 0.7 e- Readout Noise
-
Dhyana 400BSI V3
BSI sCMOS camera designed to be lighter and to use less power for easier integration into small spaces.
- 95% QE @ 600 nm
- 6.5 μm x 6.5 μm
- 2048 (H) x 2048 (V)
- 100 fps @ 4.2 MP
- CameraLink & USB3.0
-
Aries 16
Ultimate Sensitivity sCMOS
- 16 μm x 16 μm pixels
- 0.9 e- readout noise
- 90 % Peak QE
- 800 (H) x 600 (V)
- CameraLink & USB3.0
-
Dhyana 95 V2
BSI sCMOS camera delivering the highest sensitivity for low light applications.
- 95 % @ 560 nm
- 11 μm x 11 μm
- 2048 (H) x 2048 (V)
- 48 fps @ 12-bit
- CameraLink & USB3.0
-
Dhyana 400D
4MP mono FSI sCMOS camera with 72% Peak QE high sensitivity.
- 72 % QE @ 595 nm
- 6.5 μm x 6.5 μm
- 2048（H） x 2040 (V)
- 35 fps @ 16 bit
- USB3.0
-
Dhyana 400DC
4MP color FSI sCMOS camera for low light imaging.
- Color sCMOS
- 6.5 μm x 6.5 μm
- 2048 (H) x 2048 (V)
- 22 fps @ 8 bit, 16 fps @ 16 bit
- USB3.0
Large Format >
-

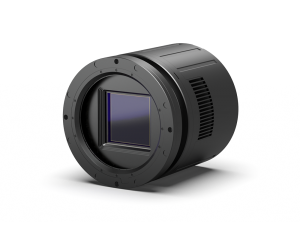

Dhyana 6060BSI
Ultra-large BSI sCMOS camera with CXP high-speed interface.
- 95 % QE @ 580 nm
- 10 μm x 10 μm
- 6144 (H) x 6144 (V)
- 26.4 fps @ 12-bit
- CoaXPress 2.0
-
Dhyana 4040BSI
Large format BSI sCMOS camera with cameraLink high-speed interface.
- 90% QE @550nm
- 9 μm x 9 μm
- 4096 (H) x 4096 (V)
- 16.5 fps @ CL, 9.7 fps @ USB3.0
- CameraLink & USB3.0
-

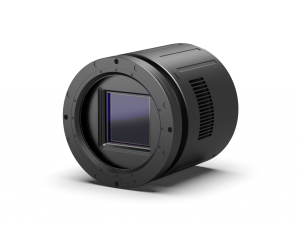

Dhyana 6060
Ultra-large FSI sCMOS camera with CXP high-speed interface.
- 72 % @550 nm
- 10 μm x 10 μm
- 6144 (H) x 6144 (V)
- 44 fps @ 12-bit
- CoaXPress 2.0
-

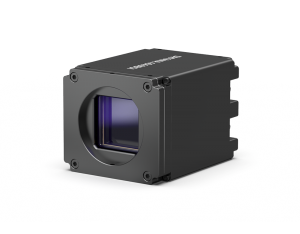

Dhyana 4040
Large FSI sCMOS camera with cameraLink high-speed interface.
- 74% QE @ 600nm
- 9 μm x 9 μm
- 4096 (H) x 4096 (V)
- 16.5 fps @ CL, 9.7 fps @ USB3.0
- CameraLink & USB3.0
Compact Design >
-

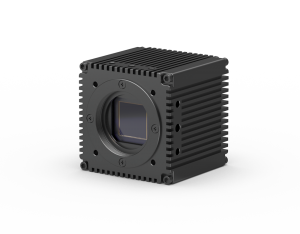

Dhyana 401A-G
Compact 11 μm sCMOS designed with instrument integration in mind.
- 32mm Diameter
- 11μm x 11μm
- 2048 (H) x 2048 (V)
- 90,000e- Full Well
- GenICam Standard
-

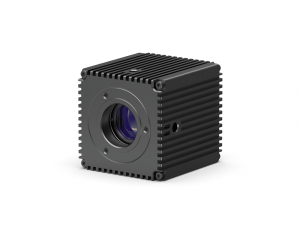

Dhyana 401D
Compact 6.5μm sCMOS designed with instrument integration in mind.
- 18.8 mm Diagonal FOV
- 6.5 μm x 6.5 μm Pixel Size
- 2048 x 2048 Resolution
- 40 fps @ 16 bit, 45 fps @ 8 bit
- USB3.0 Data Interface
-
Dhyana 201D
Compact 6.5 μm sCMOS designed with instrument integration in mind.
- 15.3 mm Diagonal
- 6.5 μm x 6.5 μm
- 2048 (H) x1152 (V)
- 70 fps @ 16 bit, 80 fps @ 8 bit
- USB3.0
High Throughput >
-
Leo 3243 Pro
High Throughput Area Camera
- 31mm Diagonal
- 3.2 μm pixels
- 8192 x 5232
- 100 fps @ 43MP
- 100G CoF interface
-

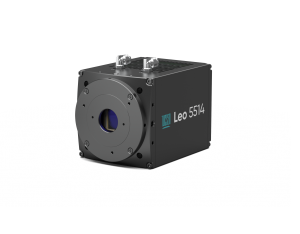

Leo 5514 Pro - Preview
High Throughput Area Camera
- 30.5mm Diagonal
- 83% QE / 2.0e⁻ / 5.5 µm
- Global Shutter
- 670 fps@14MP
- 100G CoF interface
-

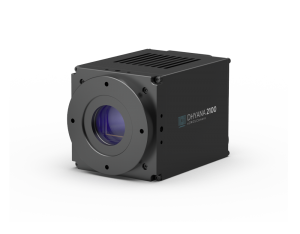

Dhyana 2100
Maximising Speed & Resolution in sCMOS
- 450 fps @ 21MP
- Global Shutter
- 29.5 mm Diagonal
- 5120 (H) x 4096 (V)
- Liquid or Air Cooling
X-ray & EUV >
-
Dhyana XV
Vacuum-compatable in-vaccum high-speed BSI sCMOS cameras for soft X-ray and EUV direct detection
- Reliable Invacuum Design
- ~100% Peak QE @ 80-1000 eV
- 10⁻6 Pa Vacuum Compatbility
- 2Kx2K, 4Kx4K, 6Kx6K Resolution
- USB 3.0
-
Dhyana XF
Vacuum-compatable open-front high-speed BSI sCMOS cameras for soft X-ray and EUV direct detection
- Standard CF Camera Flanges
- ~100% Peak QE @ 80-1000 eV
- 10⁻⁷ Pa Vacuum compatbility
- 2Kx2K, 4Kx4K, 6Kx6K Resolution
- CameraLink & USB 3.0
